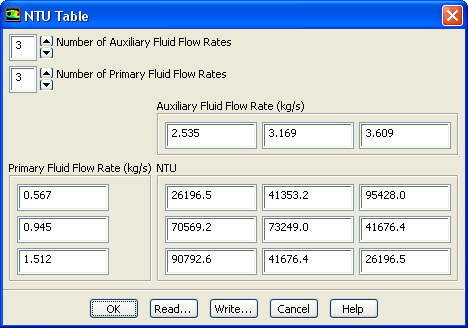

33.3.12 NTU Table Dialog Box

The NTU Table dialog box contains information on the number of fluid flow rates and NTU data for the primary and auxiliary fluids. See Section  14.3 for details about using this dialog box.

Controls

Number of Auxiliary Fluid Flow Rates   sets the number of auxiliary fluid flow rates.

Number of Primary Fluid Flow Rates   sets the number of primary fluid flow rates.

Auxiliary Fluid Flow Rate   sets fluid flow rates for the auxiliary fluid.

Primary Fluid Flow Rate   sets fluid flow rates for the primary fluid.

NTU   sets the NTU values for the corresponding primary and auxiliary fluid flow rates.

Read...   allows you to read in a file containing NTU data.

Write...   allows you to write a file containing NTU data.
