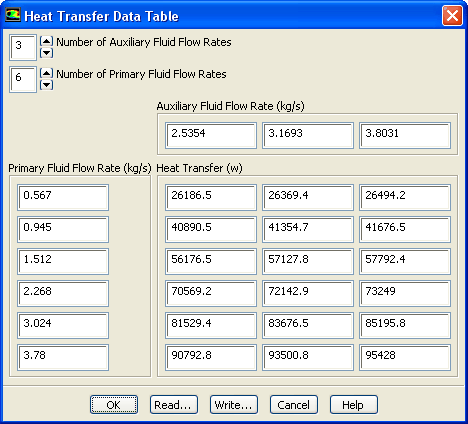

33.3.11 Heat Transfer Data Table Dialog Box

The Heat Transfer Data Table dialog box contains information on the number of fluid flow rates and heat transfer data for the primary and auxiliary fluids. See Section  14.3 for details about using this dialog box.

Controls

Number of Auxiliary Fluid Flow Rates   sets the number of auxiliary fluid flow rates.

Number of Primary Fluid Flow Rates   sets the number of primary fluid flow rates.

Auxiliary Fluid Flow Rate   sets fluid flow rates for the auxiliary fluid.

Primary Fluid Flow Rate   sets fluid flow rates for the primary fluid.

Heat Transfer   sets the heat transfer for the corresponding primary and auxiliary fluid flow rates.

Read...   allows you to read in a file containing heat transfer data.

Write...   allows you to write a file containing heat transfer data.
