Step 7: Solution

1.   Set the solution parameters.

Solution Methods

(a)   Select Body Force Weighted from the Pressure drop-down list in the Spatial Discretization group box.

2.   Initialize the solution.

Solution Initialization

(a)   Enter 20 C for Temperature.

(b)   Click Initialize.

3.   Save the case file ( do.cas.gz)

File $\rightarrow$ Write $\rightarrow$ Case...

4.   Start the calculation by requesting 1000 iterations.

Run Calculation

(a)   Enter 1000 for Number of Iterations.

(b)   Click Calculate.

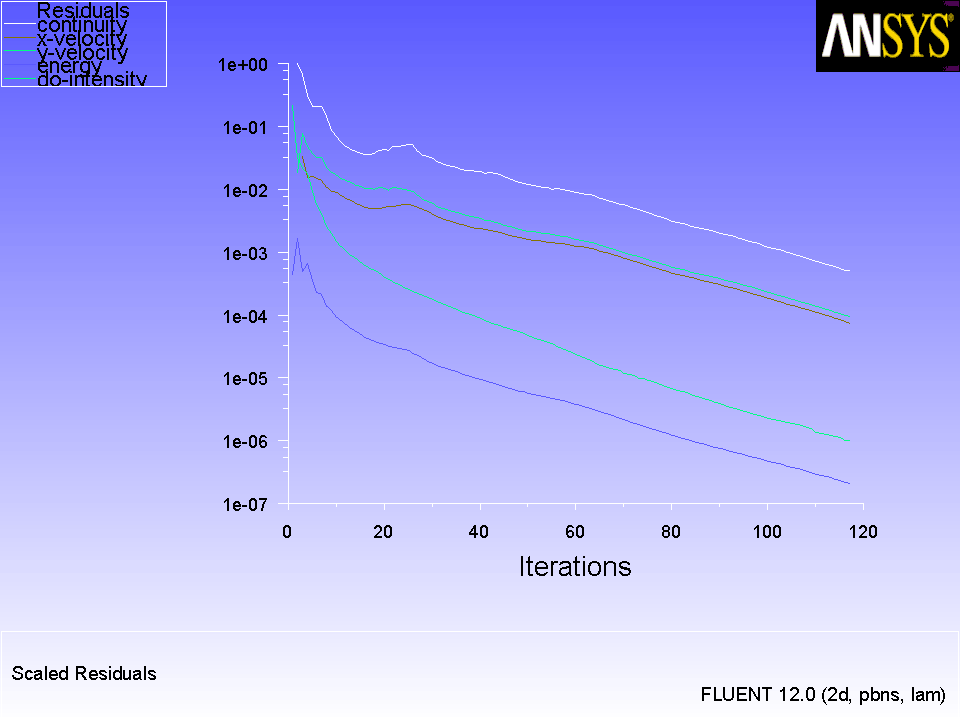

Figure 6.3: Residuals

  The solution will converge in approximately 120 iterations.

5.   Save the case and data files ( do.cas.gz and do.dat.gz).

File $\rightarrow$ Write $\rightarrow$ Case & Data...
