Step 3: Models

figure Models

1.   Enable heat transfer by enabling the energy equation.

figure Models figure figure Energy figure Edit...

figure

(a)   Click OK to close the Energy dialog box.

2.   Enable the standard $k$- $\epsilon$ turbulence model.

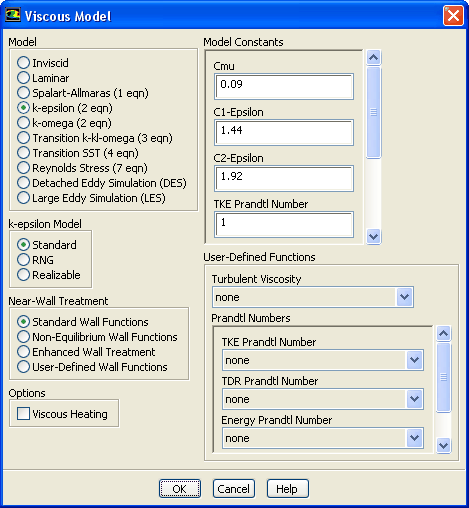

figure Models figure figure Viscous figure Edit...

figure

(a)   Select k-epsilon (2 eqn) in the Model list.

  The Viscous Model dialog box will expand to show the additional input options for the $k$- $\epsilon$ model.

(b)   Retain the default settings for the remaining parameters.

(c)   Click OK to close the Viscous Model dialog box.
